Connecting AWS RDS with an EC2 instance

Amazon Web Services(AWS) provides a range of cloud-based services, and two of the most popular are Amazon Elastic Compute Cloud(EC2) and Amazon Relational Database Service (RDS). EC2 is a virtual server running in the cloud that can be scaled up or down as per the needs of a user, while RDS is a service that enables us to setup, operate and scale a relational database in the AWS cloud.

In this blog, we will go through the steps to launch an EC2 instance, launch an RDS instance, and connect RDS from the EC2 instance.

Configuring an EC2 instance

1. Sign in to the AWS Management Console and navigate to the EC2 service.

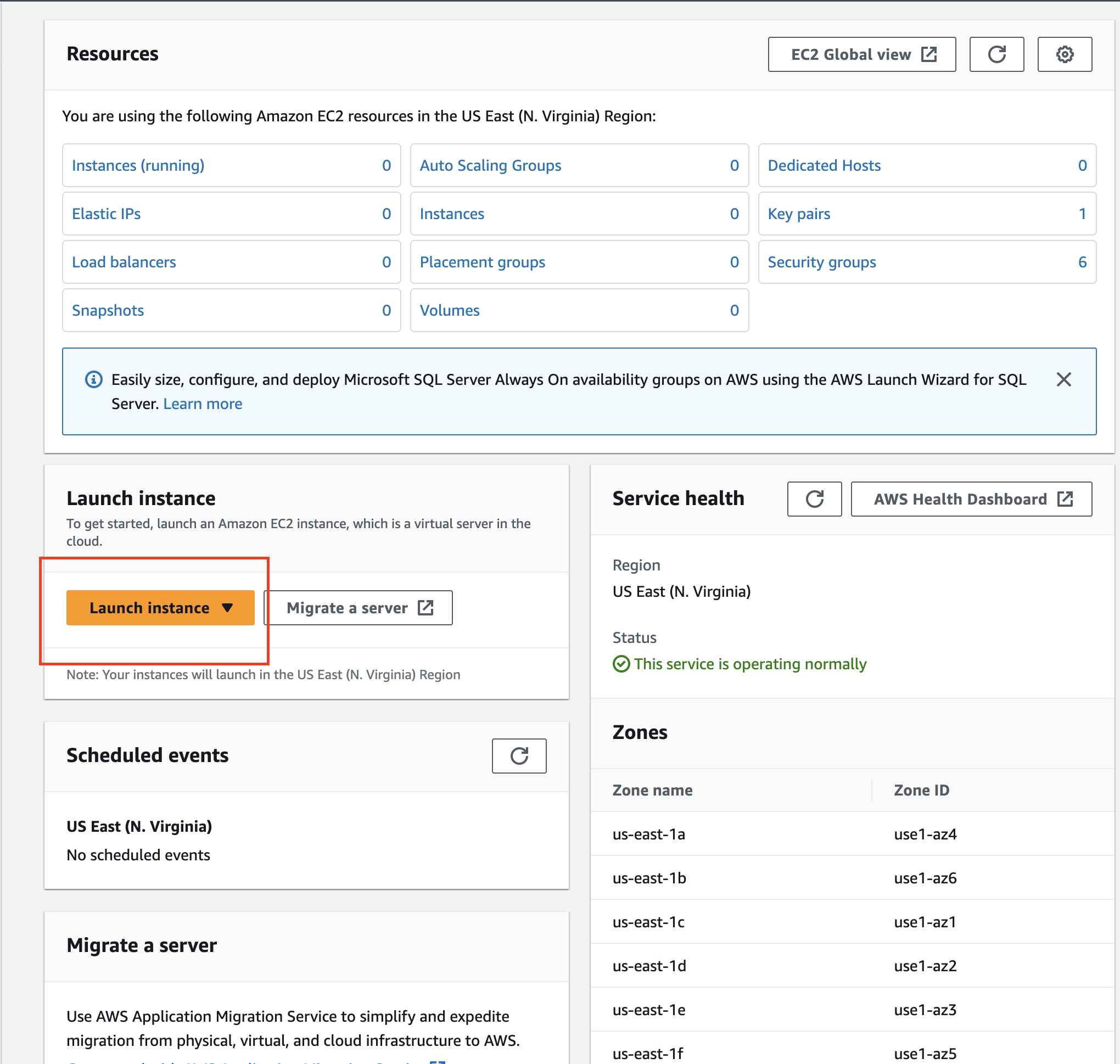

2. Click on the “Launch Instance”

3. Name your instance,and choose the Amazon Machine Image(AMI) for the operating system image

4. Select t2.micro as an Instance type

5. Now let’s create a key pair that will allow us to connect with our EC2 instance.

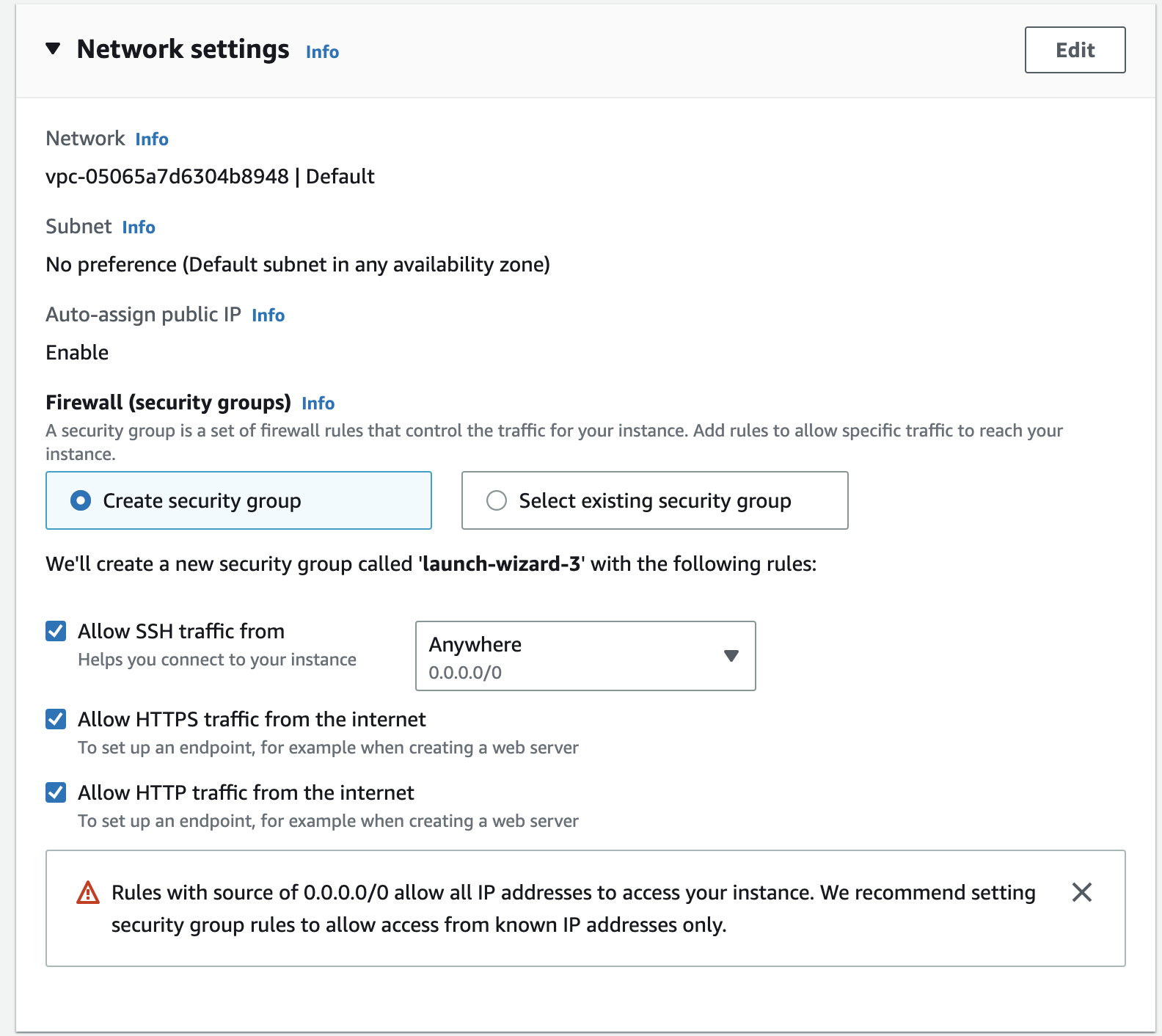

6. To control the traffic for our instance we have to configure the security groups. We will allow SSH to this instance and HTTP and HTTPS traffic from the internet.

7. Click on the launch instance button and our EC2 machine will be up and running in a couple of minutes

Configuring RDS

1. Search for RDS in the management console and navigate to it.

2. Click on the Create database button.

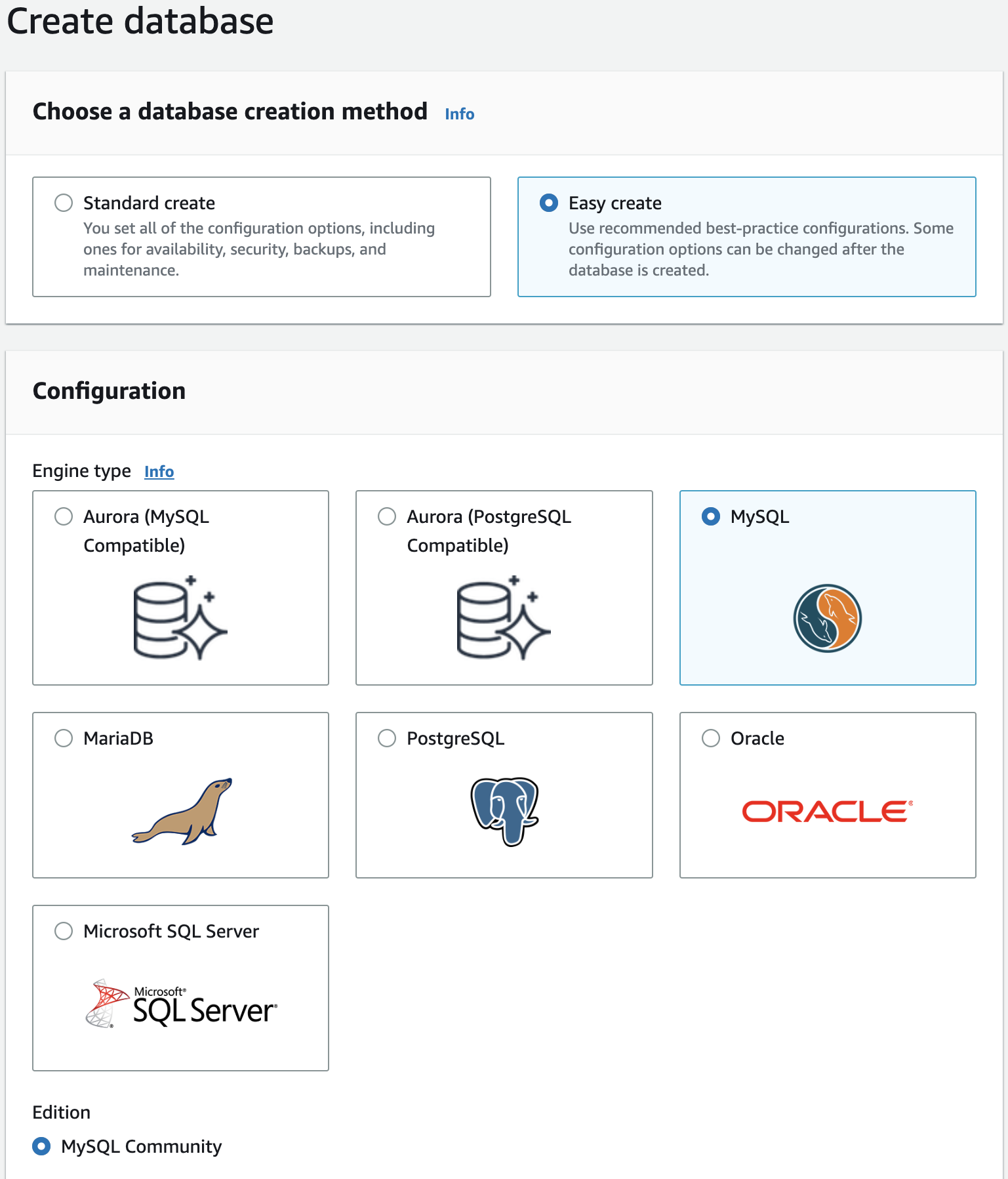

3. Select the Easy create option and choose MySQL from the engine type

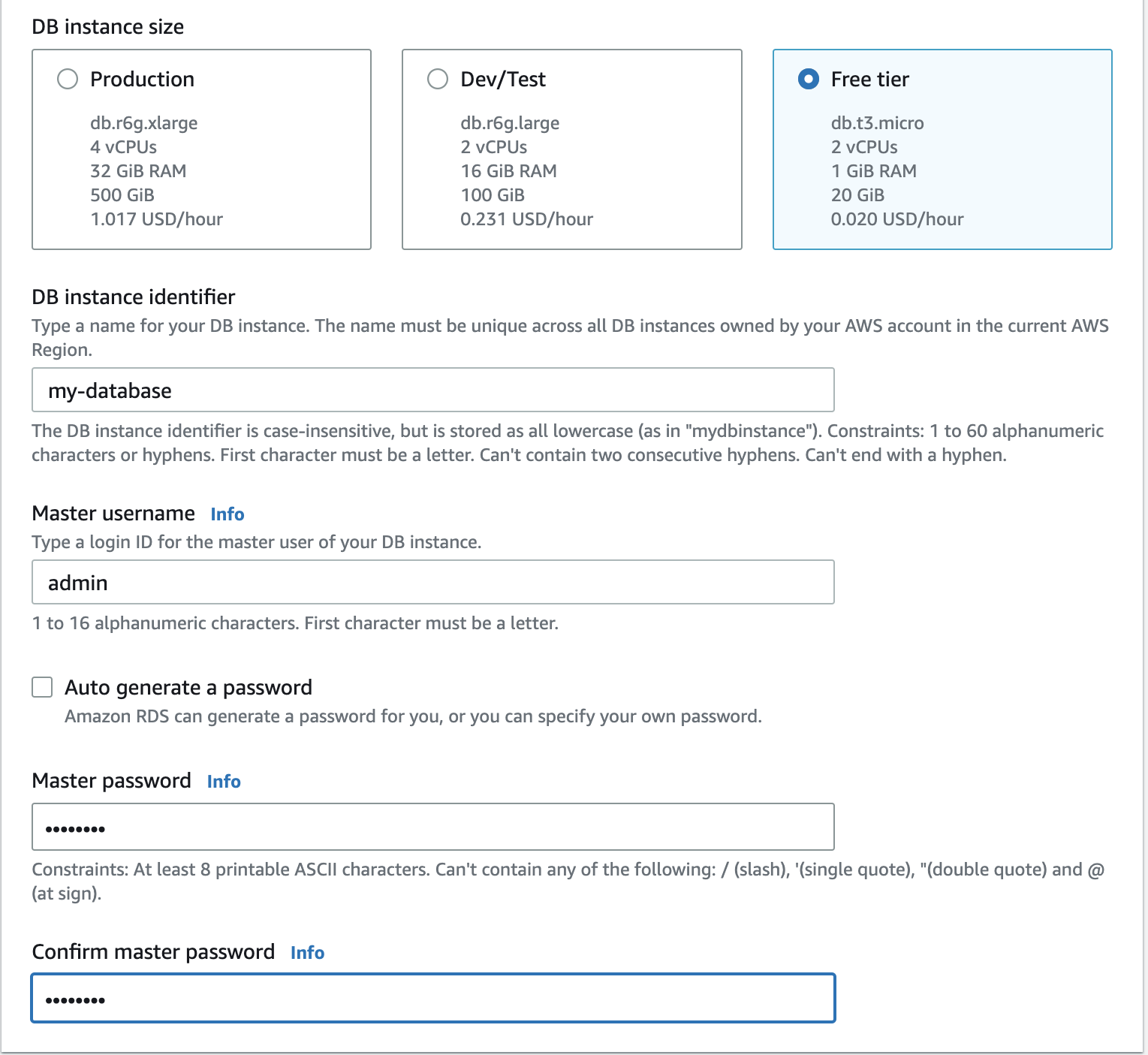

4. Choose Free tier from the available instance sizes and enter a name for the database instance, master username, and master password. Record the username and master password somewhere as it will be used for connecting with our EC2 instance.

5. Click on the Create database button. It will take a couple of minutes for MySQL instance status to be available.

Connecting EC2 instance and DB instance

AWS provides us the option to automatically connect the EC2 instance with the DB instance. To connect our EC2 instance with the DB instance

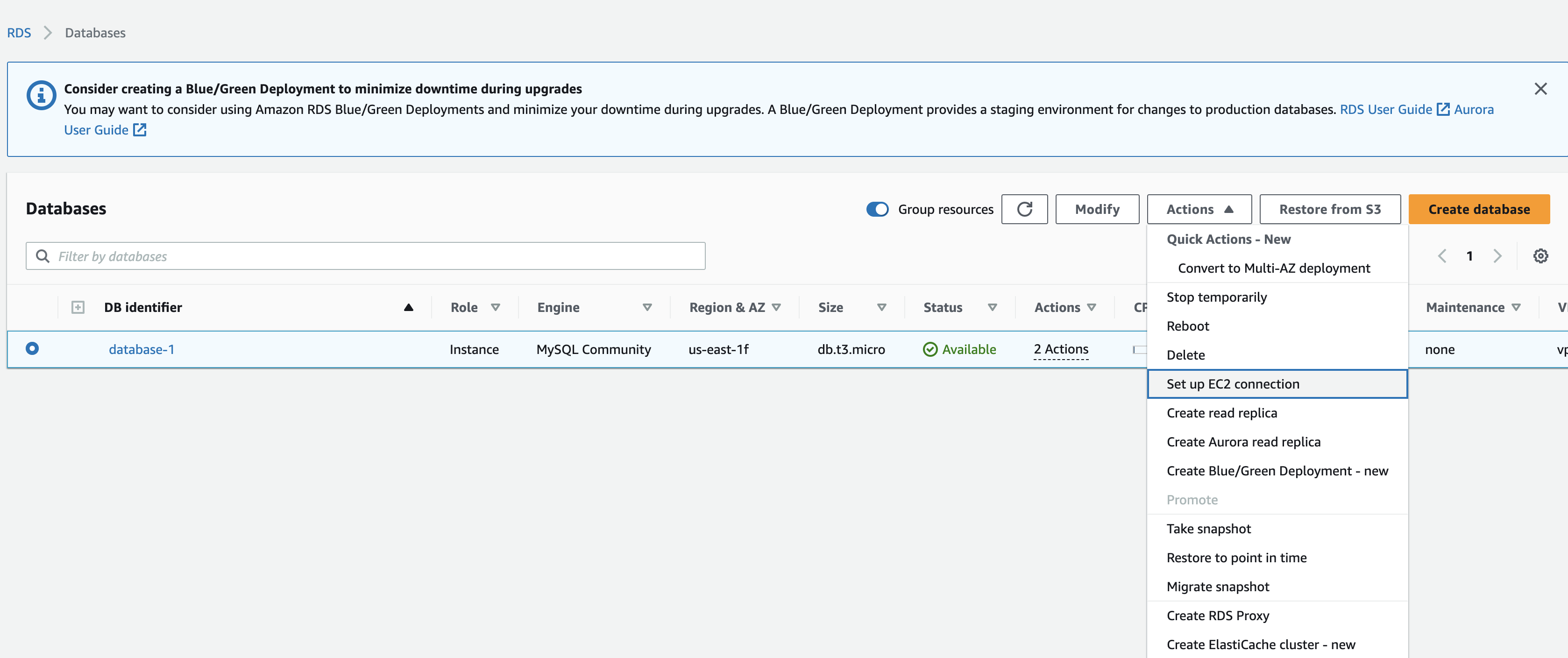

1. Select the DB identifier and click on Set up EC2 connection from the Action menu

2. Now, select the EC2 instance that we created earlier and click on Continue

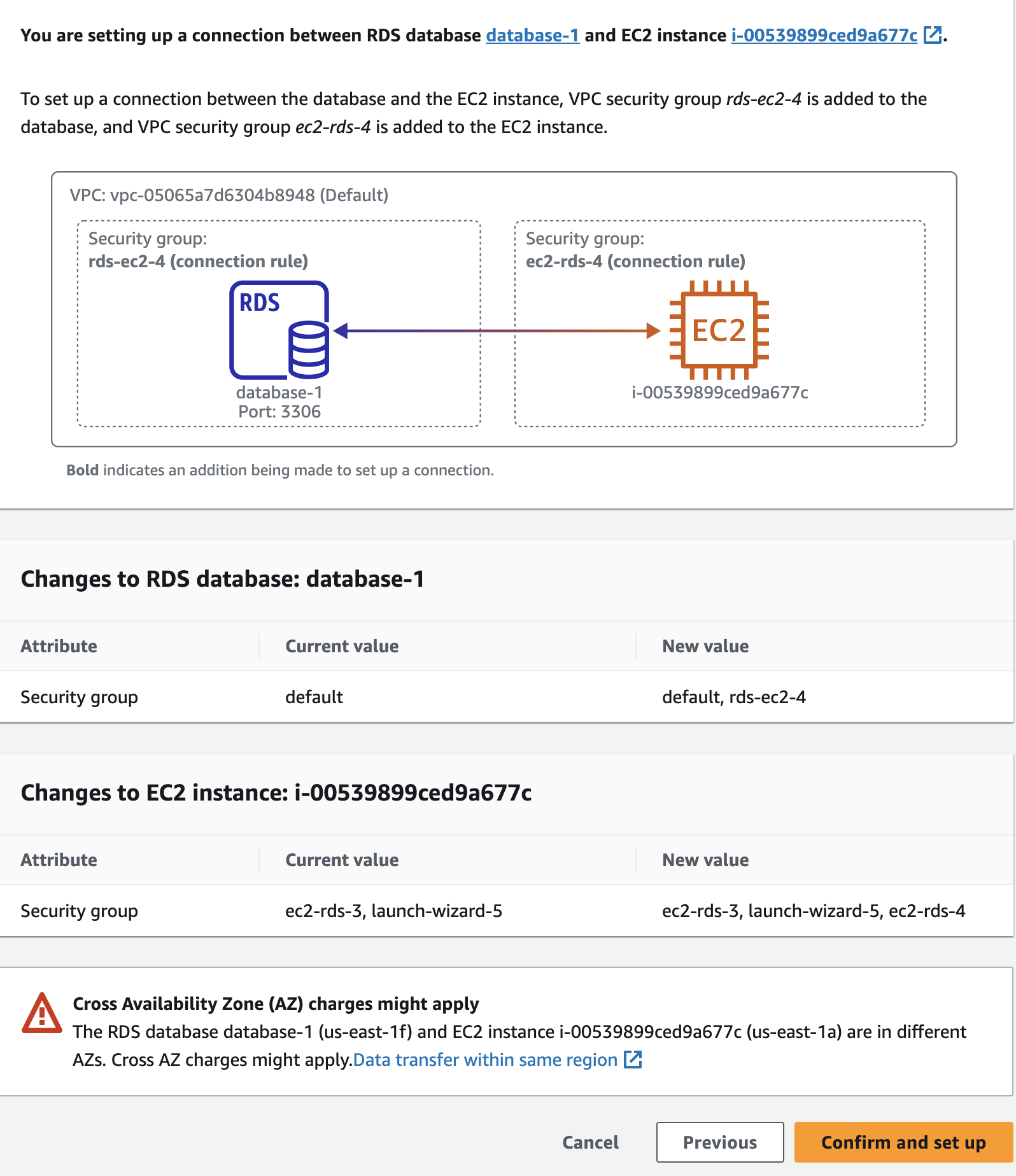

3. Click on Confirm and set up

Connecting to a MySQL DB instance

Now we will connect to the EC2 instance that we created earlier and then install the required packages to connect with our MySQL DB instance.

1. To connect with our EC2 instance copy the Public IPv4 address of the EC2 machine

2. Open the terminal and navigate to the location where we have stored the key pair file.

3. Enter the following command to modify the .pem file permission. Replace the aws-key with the key created while configuring the EC2 instance.

chmod 400 aws-key.pem

4. Enter the following command to connect with our instance. Here ec2-user is the default user in AMI OS.

ssh -i aws-key.pem ec2-user@ec2-instance-public-IPv4 address

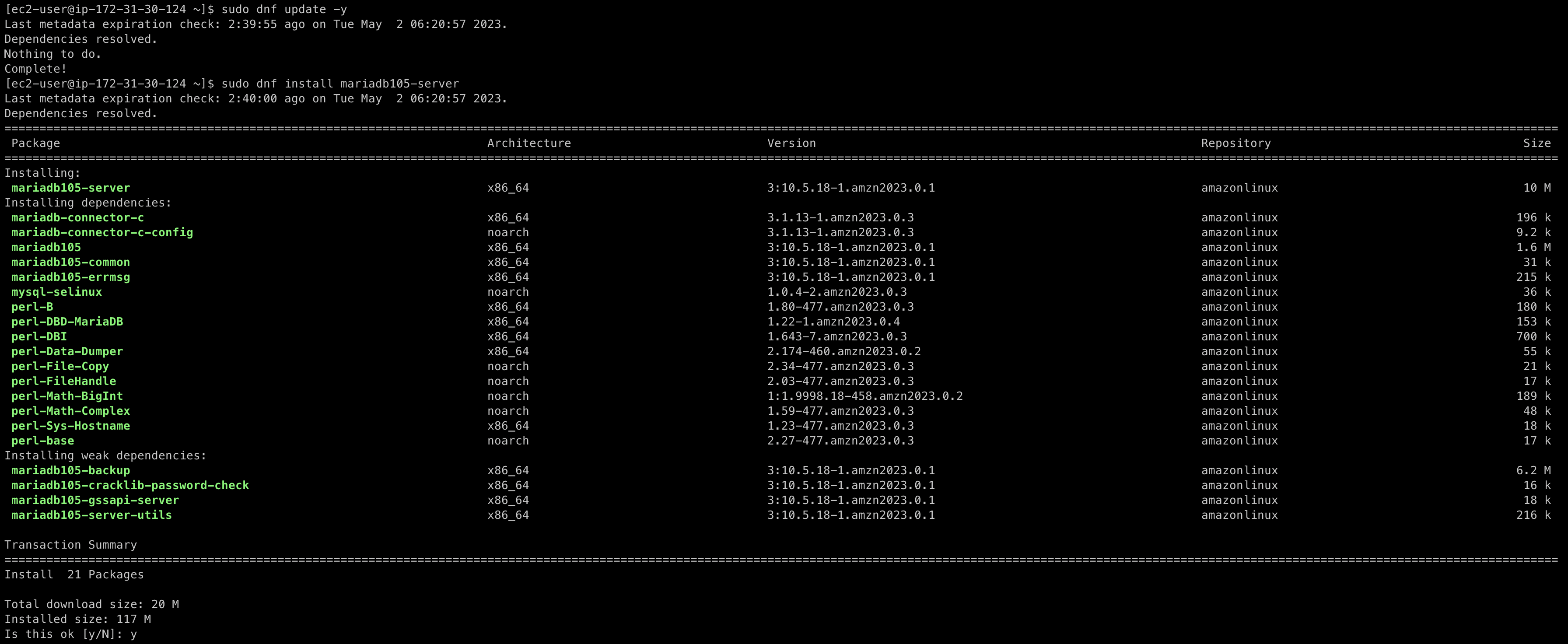

5. Now to install the MySQL command line client run the following commands. Press Y when prompted

sudo dnf update -y
sudo dnf install mariadb105-server

6. To connect with the DB instance copy the endpoint from the Connectivity & security tab on the DB-identifier page

7. Enter the following command to connect with the MySQL instance. Replace the endpoint with the endpoint of the DB instance and enter the master password when prompted for password

mysql -h endpoint -P 3306 -u admin -p

We have now successfully connected our EC2 instance with the RDS DB instance. To verify this we can run some of the MySQL commands
